FEATURES

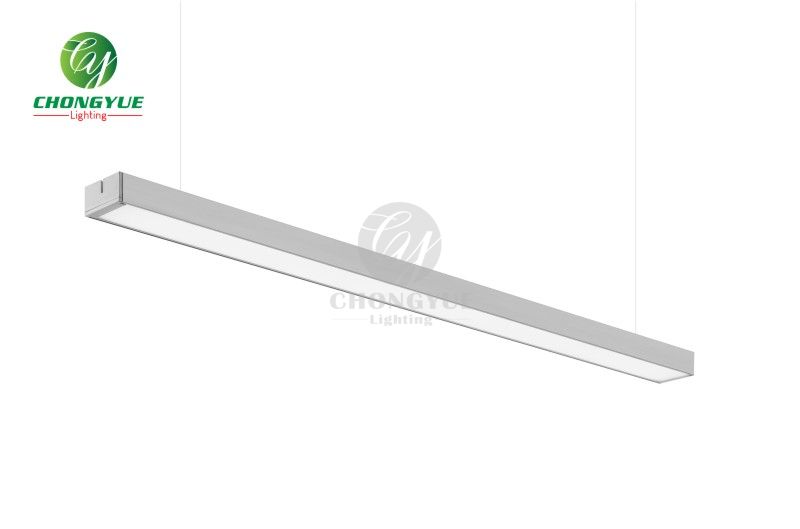

A classic LED suspension lamp, good choice for Offices, Educational Institutes, Hopitals, Warehouses, Supermarkets, Stations, Packing lots Etc.
High transmittance PS diffuser creating a hign visual comfort and very uniform lighting distributions.
Extruded aluminum housing, oxidation or powder coated fininsh, corrosion and scratch resistant, nice heat dissipation, multiply colors available on request.
External isolated power supply is relatively safe.
Easy for installation. Customized lighting system with the latest addition of system connection module accessories (180 extender/L-shape/T-shape/X-shape).
Lift-time of 50,000hrs, low lumen decay, low maintain cost.
SPECIFICAITON
Model: L-006
Application:suspension, ceilling mounted, recessed, wall moundted
Material: aluminium + PS
Opetional driver: non dimmable, 0-10Vdimmable, DALI dimmable
LED Source: SMD2835 Bridgelux chip, high lumen
Optional color temperature: 3000K/4000K/5000K/6000K
Warranty: 3 years
Linkable type and dimmable type are available. Emergency battery kit could be customized.
DALI and 0-10V Dimmable and motion sensor and emergency battery backup type are available now with LiFud,Hytronic or Meanwell driver, the price for dimmable type could be offered separately according to your request.
PARAMETERS
LED SMD2835 110V-260V 50Hz-60Hz
Model | Dimension (L x W x H mm) | Material | Finish | Lens material | Light souce | Power (W) | Cri | CCT(K) | Driver | Life Time | |||||
L-006-2400-72W | 2400x70x40mm | aluminum | oxication/powder coated | PS | SMD2835 | 72W | ≥80 | 3000/4000/5000/6000 | exterior | 50,000hrs | |||||
L-006-1500-48W | 1500x70x40mm | aluminum | oxication/powder coated | PS | SMD2835 | 48W | ≥80 | 3000/4000/5000/6000 | exterior | 50,000hrs | |||||
L-006-1200-36W | 1200x70x40mm | aluminum | oxication/powder coated | PS | SMD2835 | 36W | ≥80 | 3000/4000/5000/6000 | exterior | 50,000hrs | |||||
L-006-900-28W | 900x70x40mm | aluminum | oxication/powder coated | PS | SMD2835 | 28W | ≥80 | 3000/4000/5000/6000 | exterior | 50,000hrs |
INSTALLATION
ACESSORY
Any inquiries with different ppecification, please contact our sales department for further information.
Mail us: susie@chongyuelighting.com

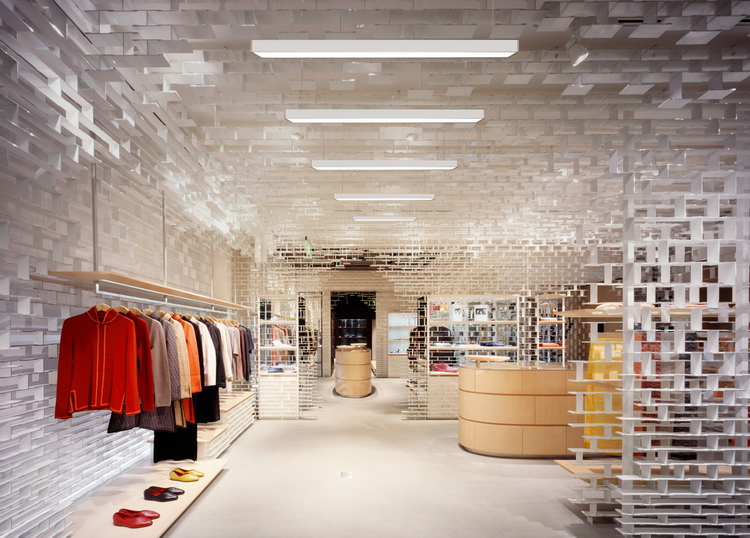

APPLICATION
